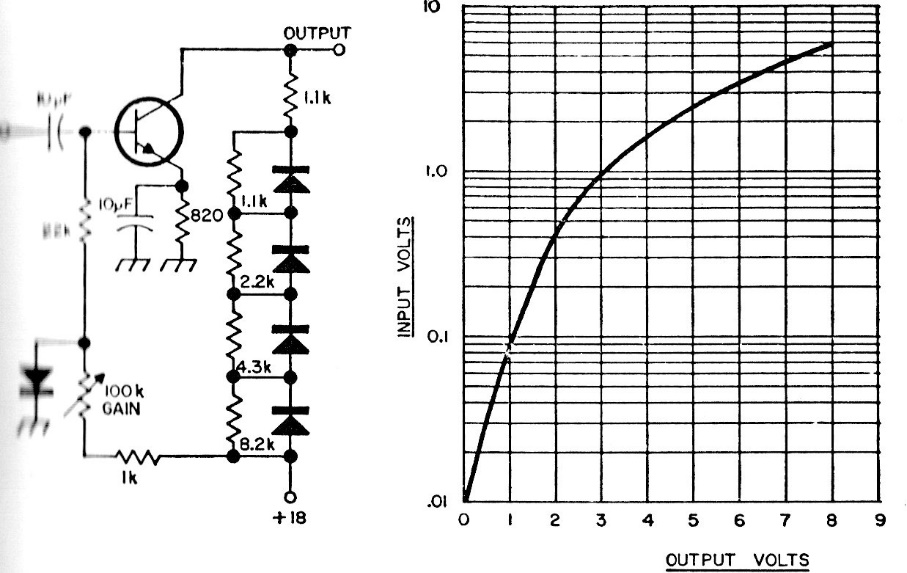

This circuit was obtained in an American documentation of 1975. The transistor can be the BC548, and the diodes are of general use. The chart next to the diagram shows the circuit's performance curve.
| Clique na imagem para ampliar |
Dynamic Compressor (CB20013E)
- Details
- Written by: Newton C. Braga
