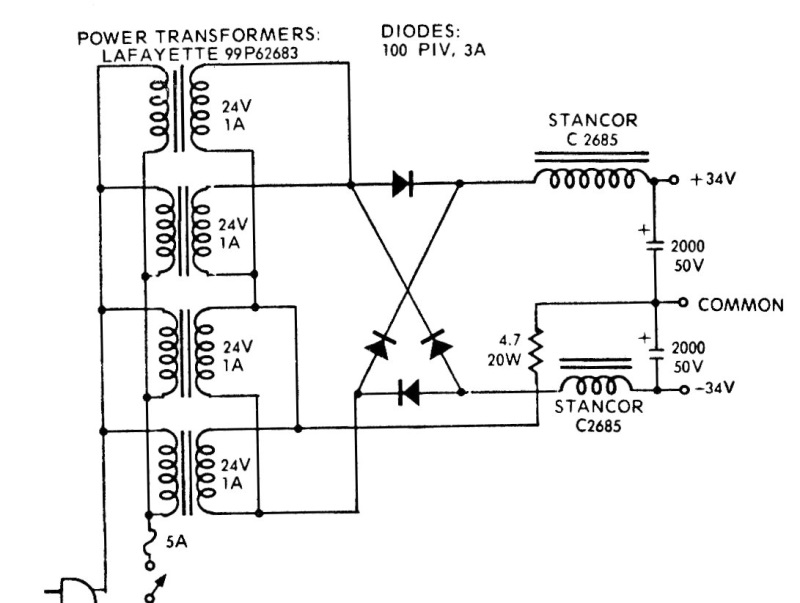

This configuration (somewhat critical, as the imbalance of characteristics between transformers can cause heating) was found in old American documentation. The circuit has an output current of the order of 2 A and the diodes can be 1N5404.
