Inverter Amplifier (CB20171E)

Details: Written by: Newton C. Braga

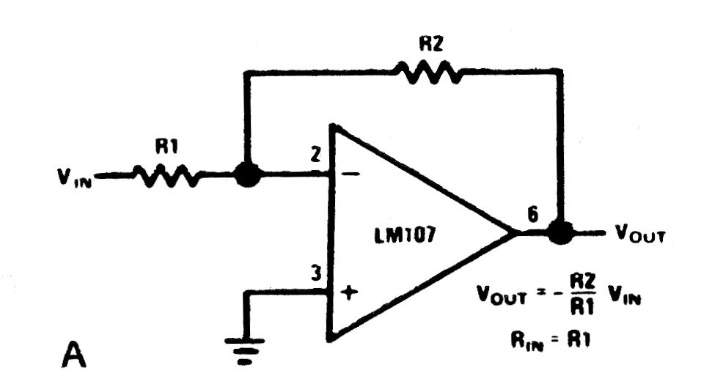

This circuit is from the LM107 manual. This operational is from the 80s, but the configuration is valid for any operational. The formulas give the gain of the circuit.

| Clique na imagem para ampliar |
