Q Multiplier (CB20279E)

Details
Written by: Newton C. Braga

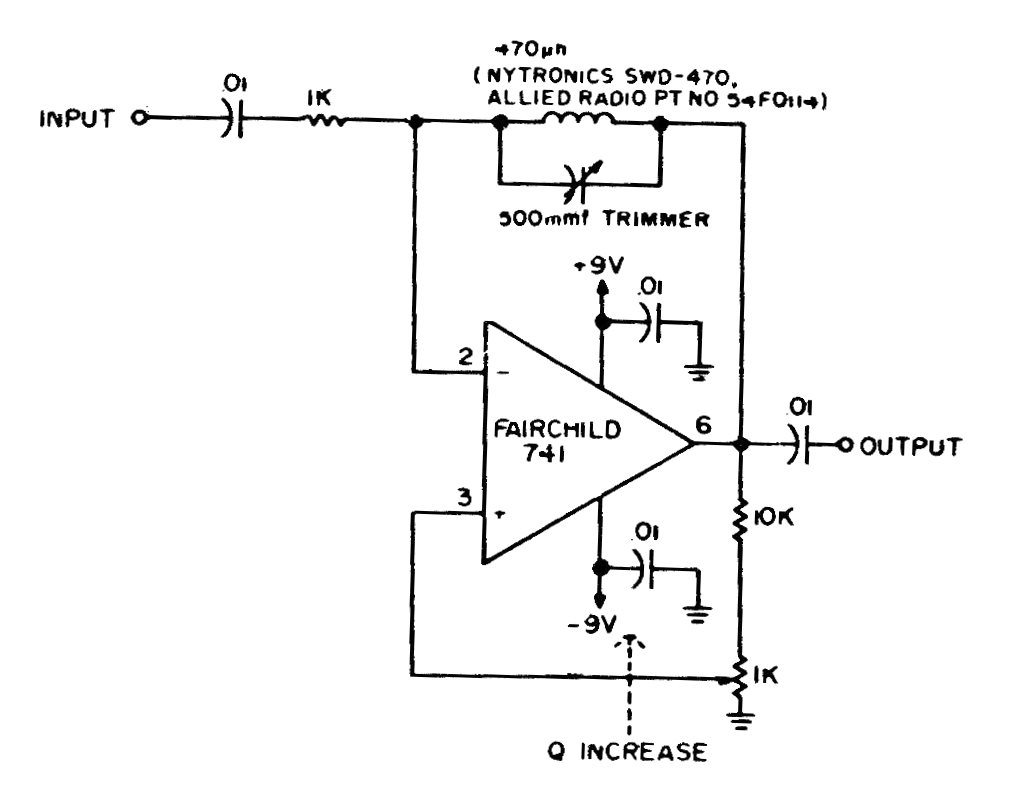

This selectivity multiplier circuit for 455 kHz IF receivers was found in American documentation from the 1980s. The circuit requires a symmetrical power supply.




| Clique na imagem para ampliar |
