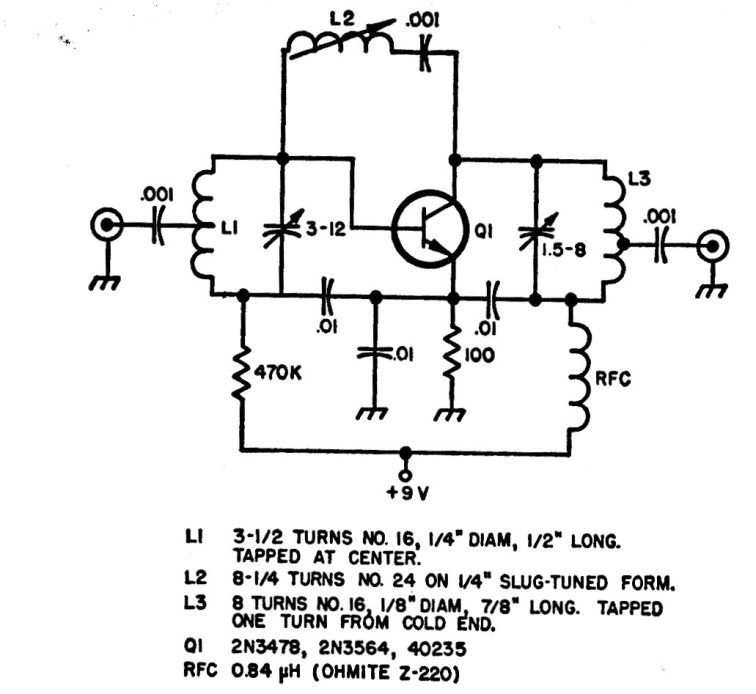

This low-noise circuit was found in American documentation from the 1980s. The circuit is critical, and the transistor must be of the type appropriate for the application. The coil data is given next to the circuit.
| Clique na imagem para ampliar |
220 MHz Low Noise Preamplifier (CB20261E)
- Details
- Written by: Newton C. Braga
