TTL and Microcontrollers 5V Supply (CB20206E)

Details
Written by: Newton C. Braga

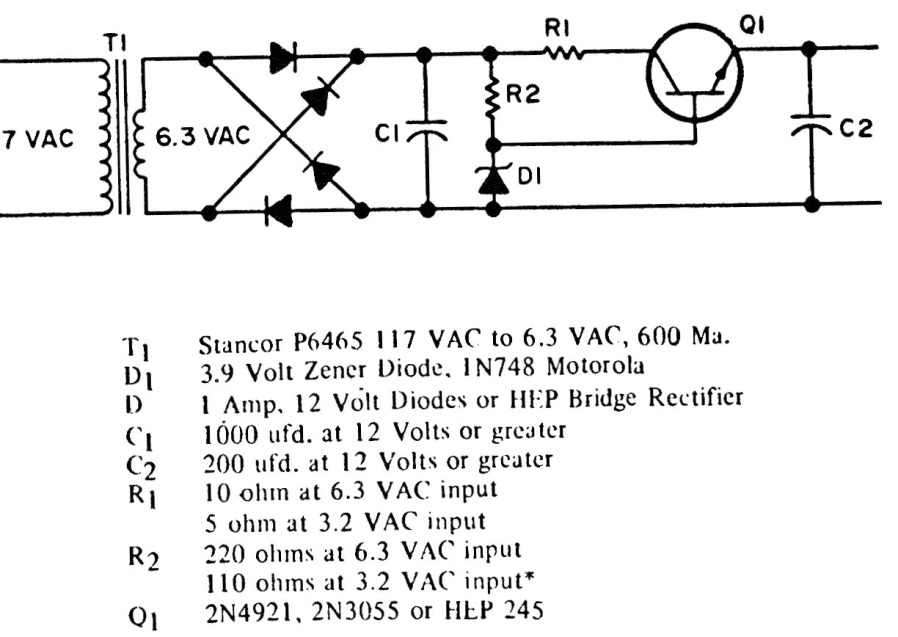

This circuit is from old documentation, but it can be implemented with more modern equivalent components. The transistor can be the TIP31 with a heatsink and the 1N4002 diodes.




| Clique na imagem para ampliar |
