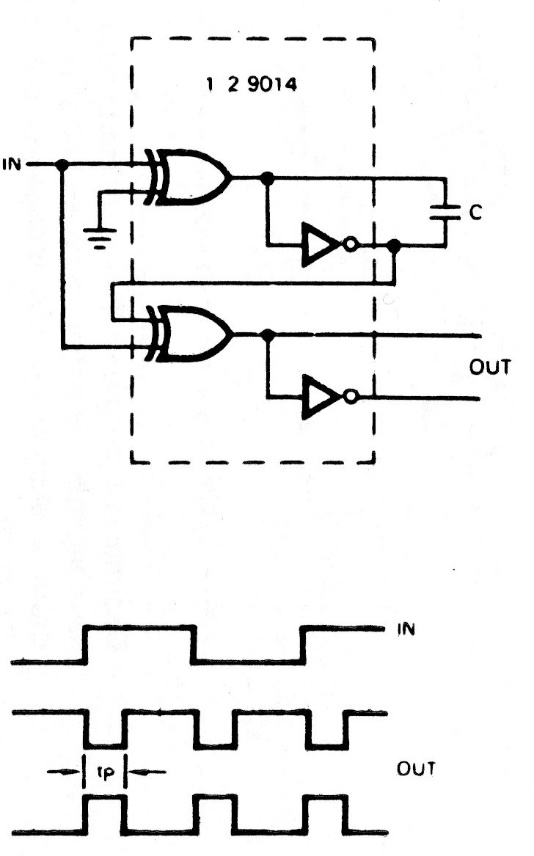

The integrated circuit used in this application is not currently common. However, it can be implemented with the same separate functions. The circuit is from an old documentation and must be powered with 5 V, and the pulse times depend on C.
Pulse Generator (CB20095E)
- Details
- Written by: Newton C. Braga
