Automotive Inverter (CB20063E)

Details
Written by: Newton C. Braga

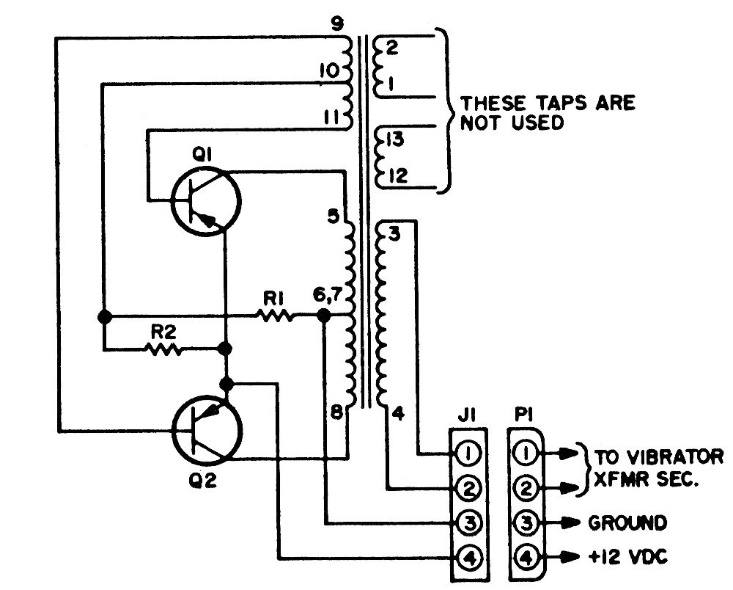

This circuit is from 1975 documentation. Transistors such as 2N3055 can be used and the transformer is of a special type. R1 is 200 ohms and R2 is 10 ohms.
