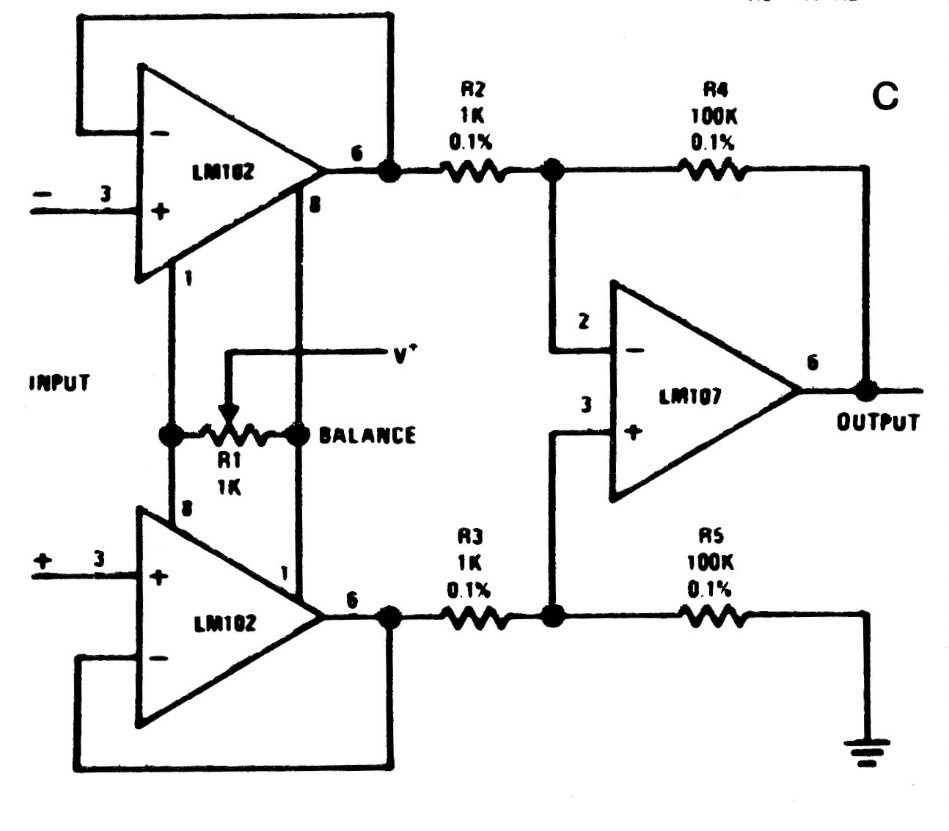

This amplifier for instrumentation with differential input is from the factory manual of the LM182, from the 80s. The circuit must be powered by a symmetrical source and can be implemented with more modern operationals.
| Clique na imagem para ampliar |
