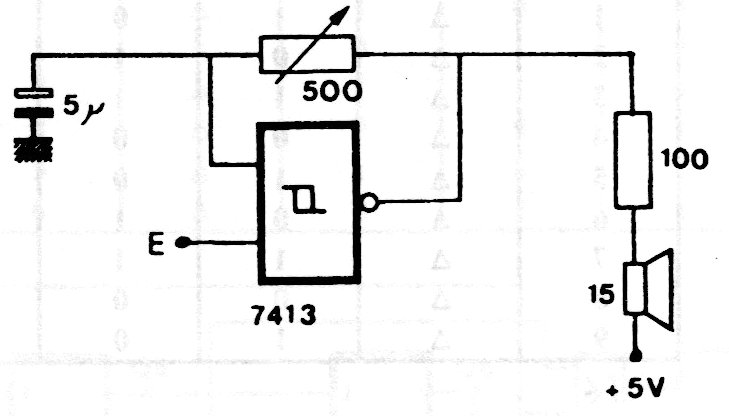

This circuit can function as an output shield for microcontrollers, being compatible with TTL logic. The frequency is adjusted in the trimpot. TTL power is 5 V.
| Clique na imagem para ampliar |
Logic Level Controlled Alarm (CB19899E)
- Details
- Written by: Newton C. Braga
