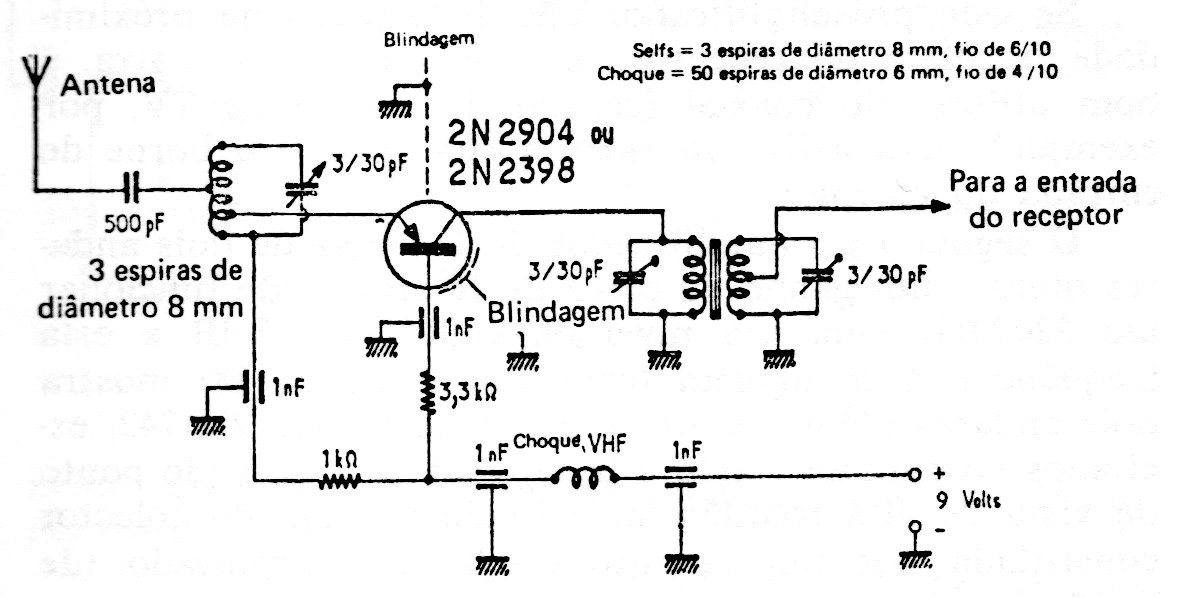

This circuit was originally indicated as a signal reinforcement step for the previous receiver (CB19598E) and others, but with small changes in the coil it can be used with FM receivers. The circuit is from the 70s with transistors of the time but can be changed to use modern transistors with higher gain.
| Clique na imagem para ampliar |
