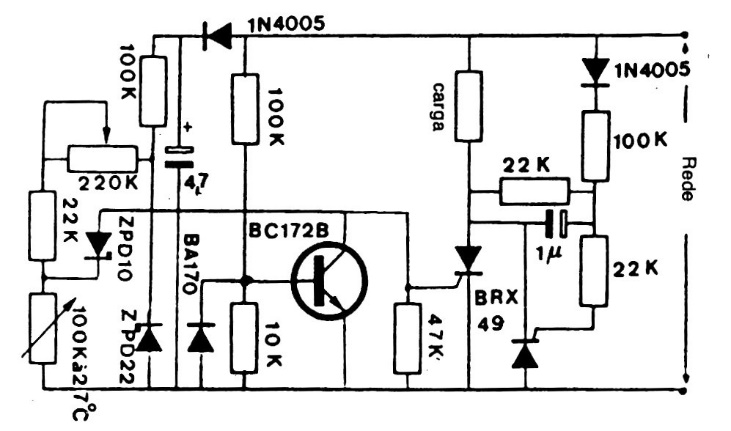

This SCR thermostat circuit was obtained in a technical documentation from the 1980s. Some components are not currently common and should be replaced by equivalents. The circuit, in the original version, controls load of up to 150 W. The sensor is a 150k ohm thermistor.
