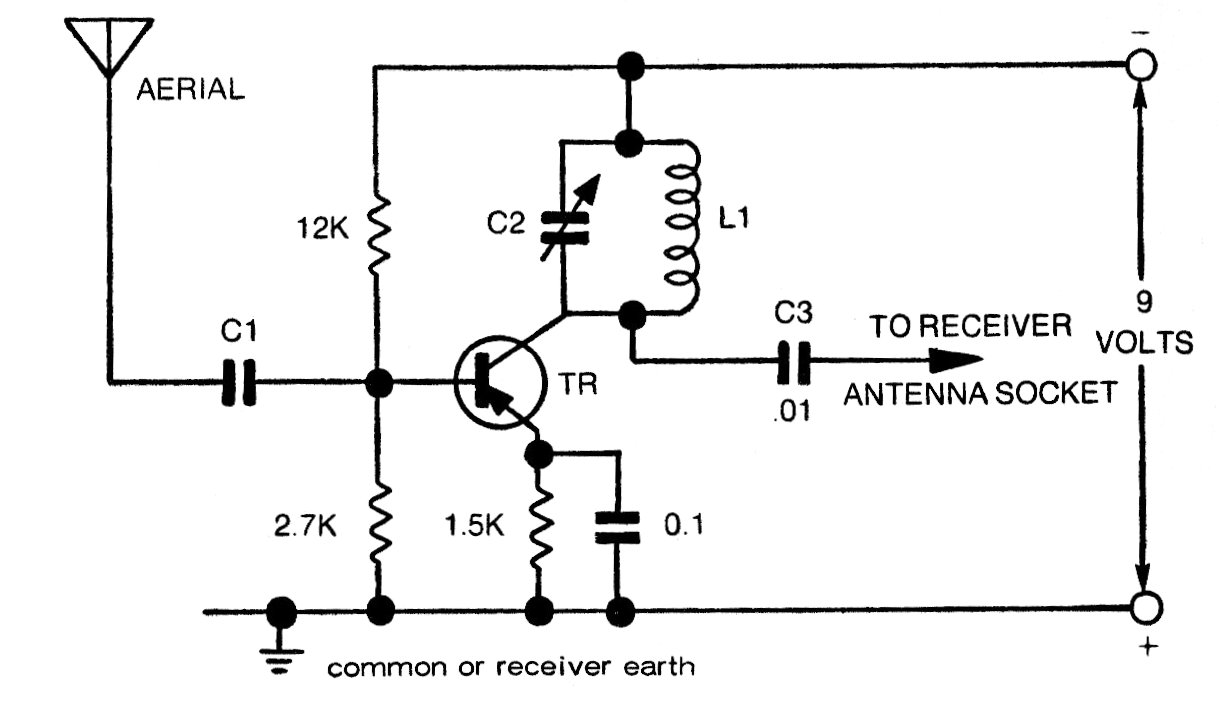

This circuit for medium and short-wave ranges, according to the transistor used, was obtained in an old American documentation. For a modern version, the BF245 can be used and the tuning circuit is according to the tuned range.
