Stabilized Amplifier (CB19901E)

Details
Written by: Newton C. Braga

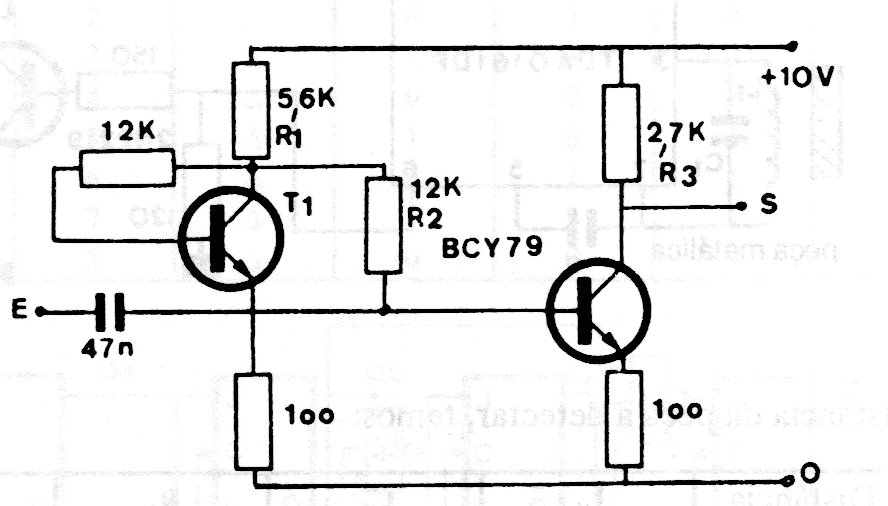

This circuit is temperature stabilized. Modern equivalent transistors can be used, and the power supply can actually be between 9 and 12 V. The circuit is from an old documentation.
