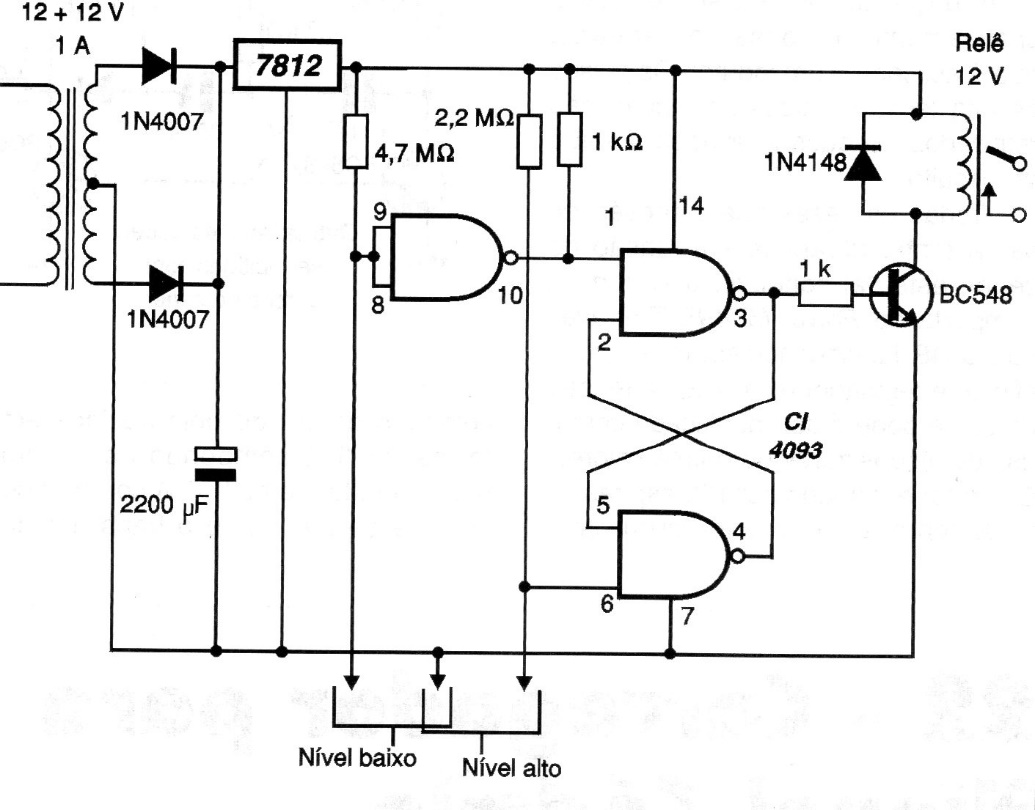

This circuit is from 2001 documentation with the purpose of controlling a pump that fills a water box and turning off when full. The sensors are wires with the peeled tips placed at the desired levels (minimum and maximum). The relay is 12 V and must have contacts according to the pump current.
