Waveform Converter (CB6668E)

Details
Written by: Newton C. Braga

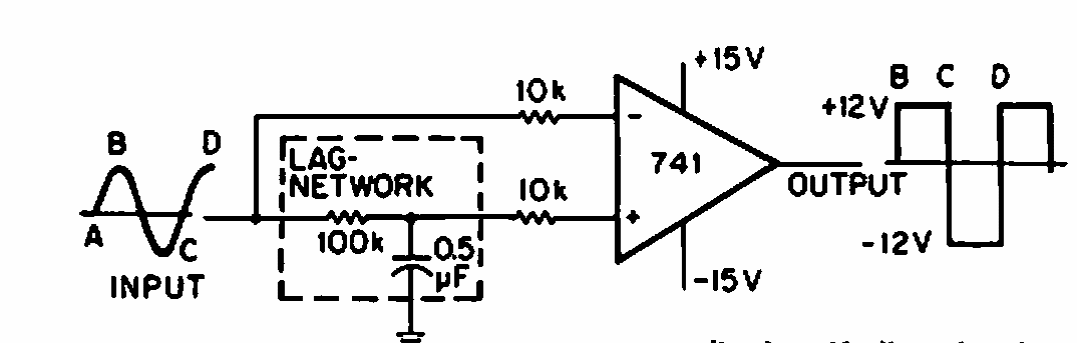

     Found in US documentation, this circuit changes the waveform and phase of a sine signal. The circuit is indicated for frequencies between 0.1 and 10 Hz. The power source must be symmetrical.
