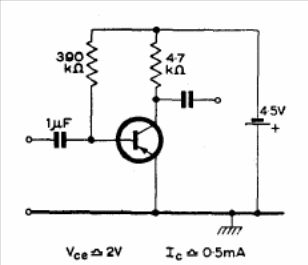

This general-purpose preamp configuration was found in the 1960 Mullard transistor reference manual. The output capacitor can typically be 100 nF z 470 nF. The input impedance is in the order of 1k5.
Common Emitter Amplifier (CB14746E)
- Details
- Written by: Newton C. Braga
