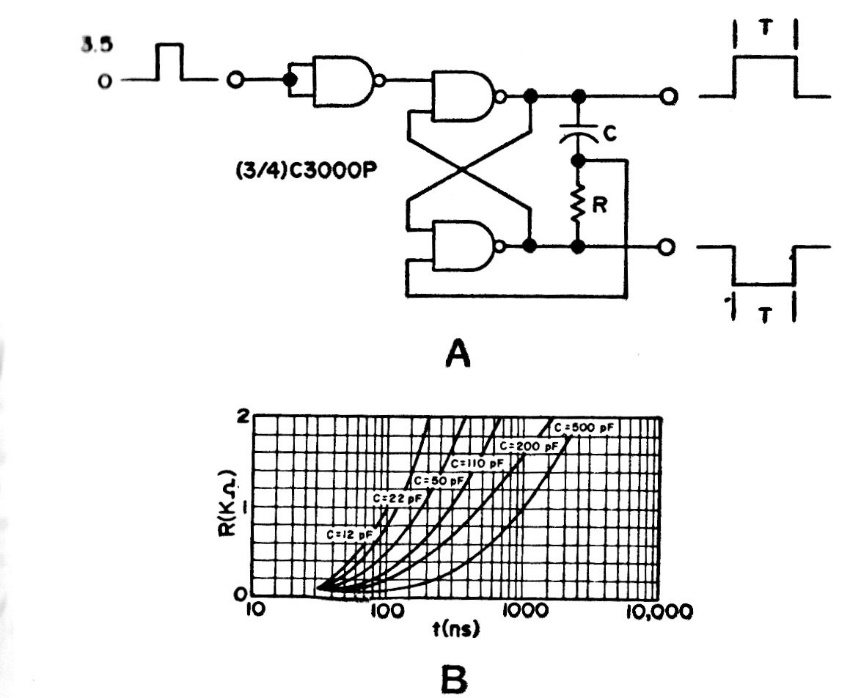

We found this configuration with a logic circuit that is now uncommon in an 80's documentation. The circuit can be implemented today with modern logic. The graph shows its behavior as a function of R and C.
| Clique na imagem para ampliar |
Single Pulse (CB20138E)
- Details
- Written by: Newton C. Braga
