This circuit drives a load with a delay given by the RC timing components. The circuit is from 1970s documentation. The diode is a general-purpose type.
| Clique na imagem para ampliar |

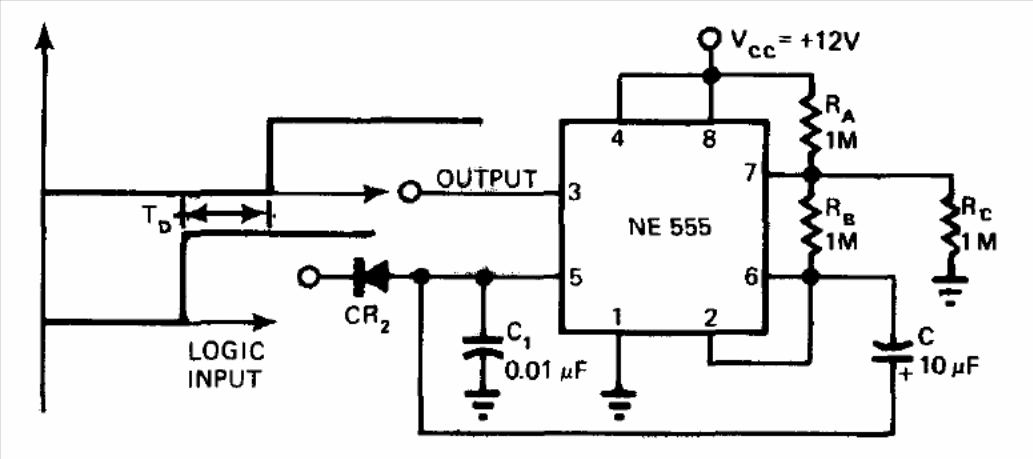

555 Delayed Switch (CB13775E)
- Details
- Written by: Newton C. Braga
