Tremolo (CB23893E)

Details
Written by: Newton C. Braga

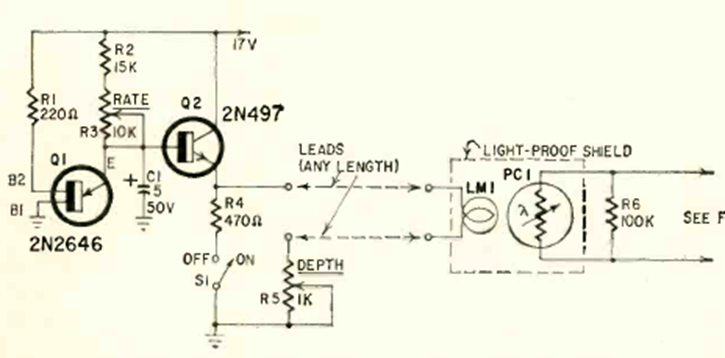

This optically coupled circuit was found in the February 1968 Radio Electronics magazine. The circuit uses an LDR in modulation. Transistors are types of the time.




| Clique na imagem para ampliar |
