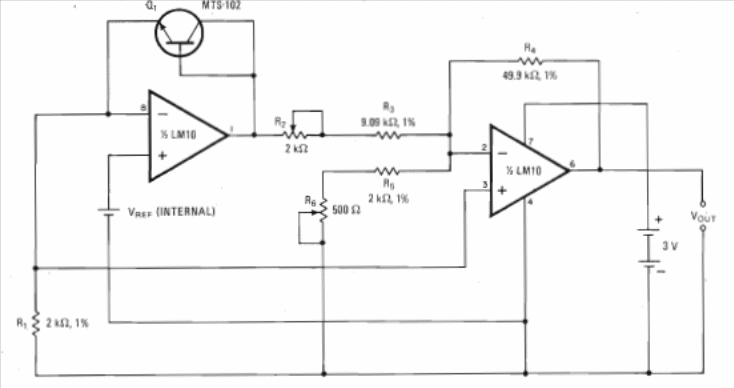

We found this circuit in an old English documentation from the 70s. The transistor can be a modern equivalent like the BC548, and the precision components are according to the measured scale. The critical component is the operational amplifier.
| Clique na imagem para ampliar |
