8V Reference (CB21535E)

Details
Written by: Newton C. Braga

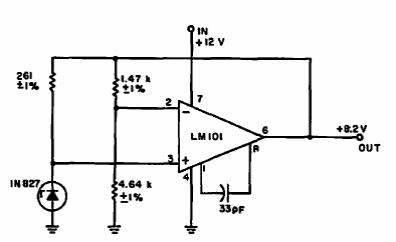

This 8.2 V voltage reference was found in a 1968 Electronic Design. The op amp is from the time, modern equivalents can be used.
