Low Consumption TTL Trigger (CB13781E)
- Details
- Written by: Newton C. Braga

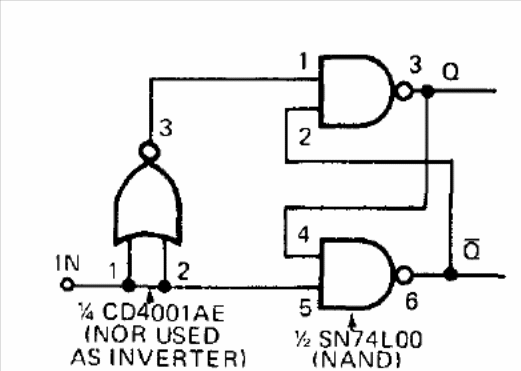

We found this logical configuration in a documentation from the 1970s. It consists of a low-consumption Schmitt trigger. Other CMOS ports can be used as an inverter.
