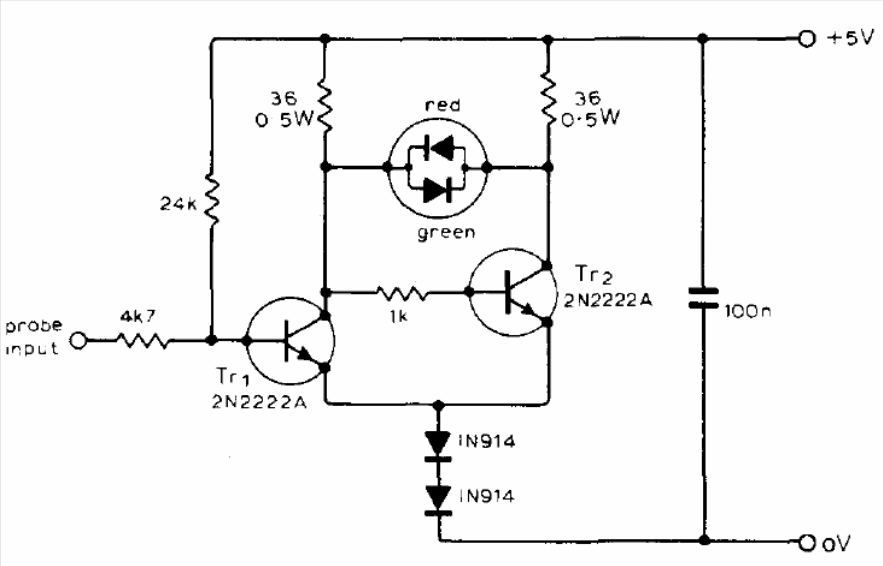

Logic Probes (CB13782E)

The circuit presented uses two common transistors and is powered by the circuit being tested. The circuit is for TTL logic, since its supply is 5 V.

| Clique na imagem para ampliar |
