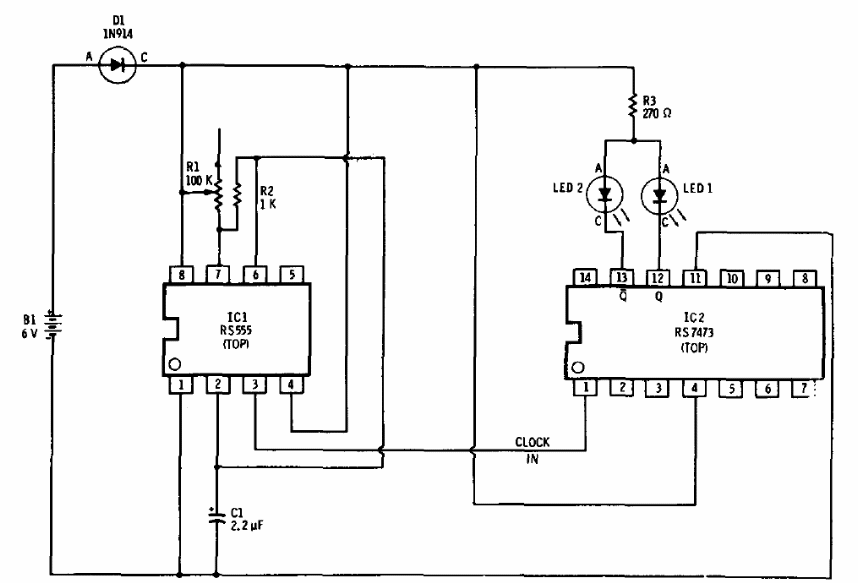

This configuration was found in Radio Shack documentation from the 70s. The circuit serves to demonstrate the principle of operation of a flip flop. Two LEDs will flash alternately at a frequency set by the potentiometer. The circuit serves for digital technology courses or STEM.
