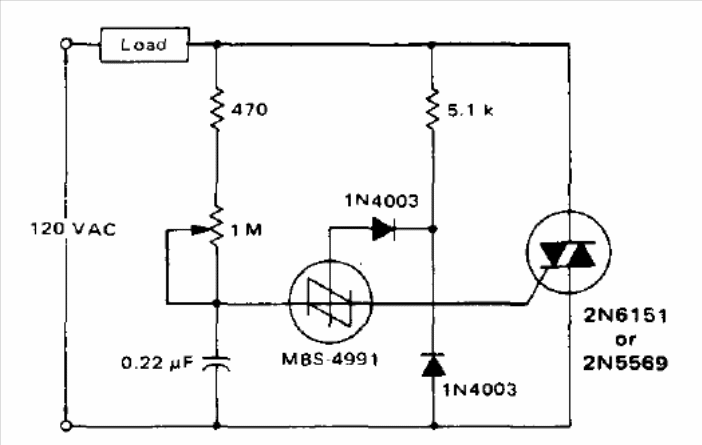

With the original components, suggested in a Motorola documentation from 1971, this circuit can control a load of 800 W. More modern triacs and an available SBS (Silicon Bilateral Switch) can be used but observing the new power specifications.
| Clique na imagem para ampliar |
