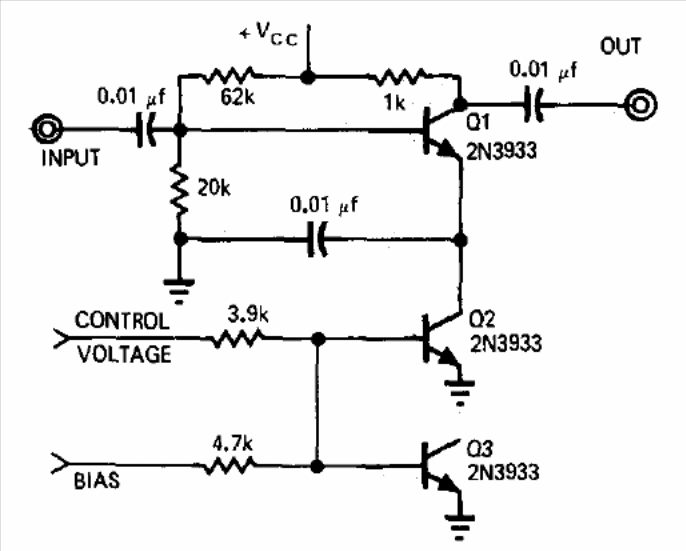

The amplification of this circuit in a 40 dB range for frequencies up to 10 MHz is controlled by the voltage applied to Q2. Bipolar transistors can be BC548 or 2N2222. The supply can be done with voltages from 6 to 12 V.
