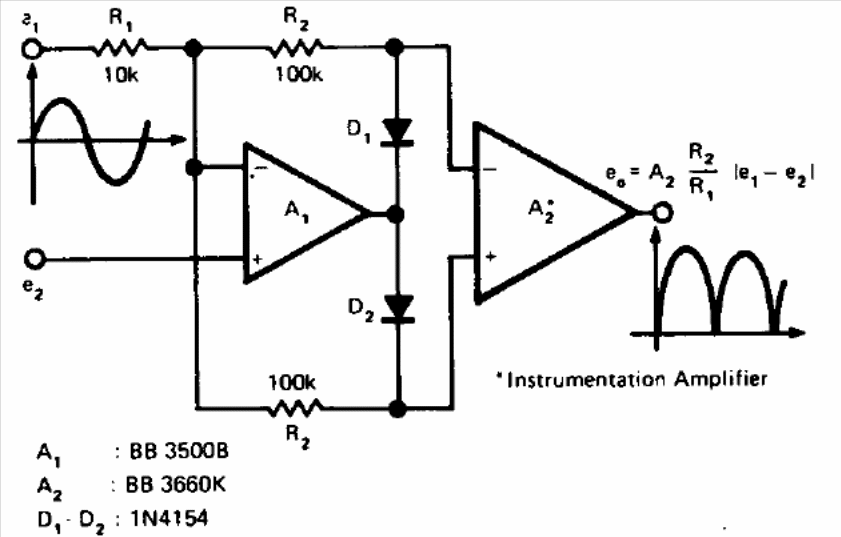

This precision signal rectifier was obtained in an American technical documentation from 1975. The operational amplifiers can be 741 and the power must be supplied from a symmetrical source.
| Clique na imagem para ampliar |
Signal Rectifier (CB13652E)
- Details
- Written by: Newton C. Braga
