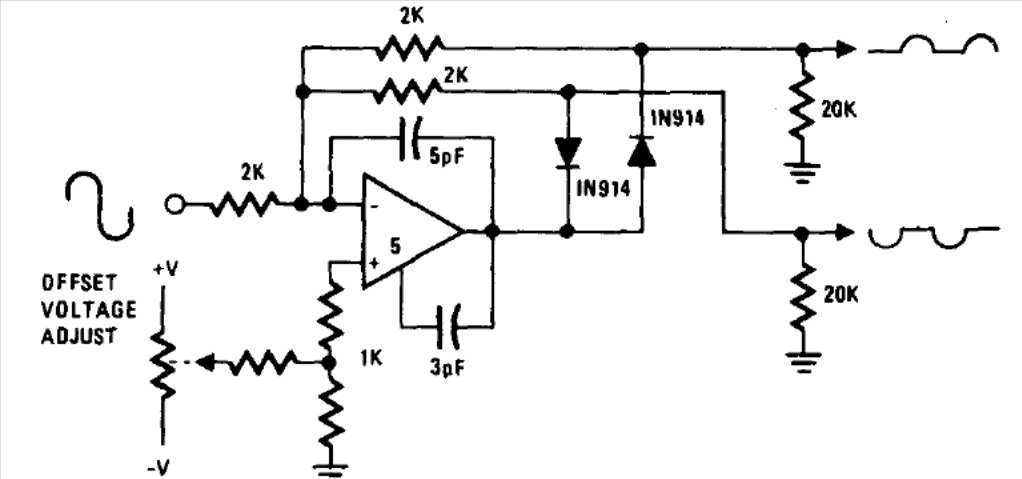

We found this circuit in a Harris Semiconductor Databook of 1977. The circuit can be implemented with any other operational amplifier and the resistors of non-standard values can be approximated to the common values today. The circuit separates the semicycles from an alternating signal.
