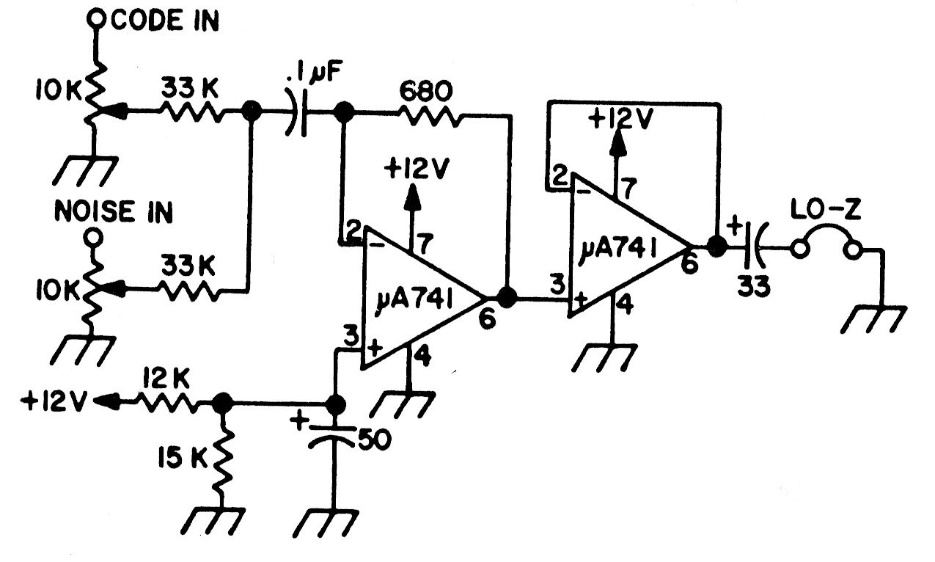

This circuit was found in a documentation for radio amateurs from the 70s. The integrated circuits used are common today and the power supply need not be symmetrical. The phone can have impedances between 8 and 200 ohms.
