Enhanced DC Amplifier (CB14029E)

Details
Written by: Newton C. Braga

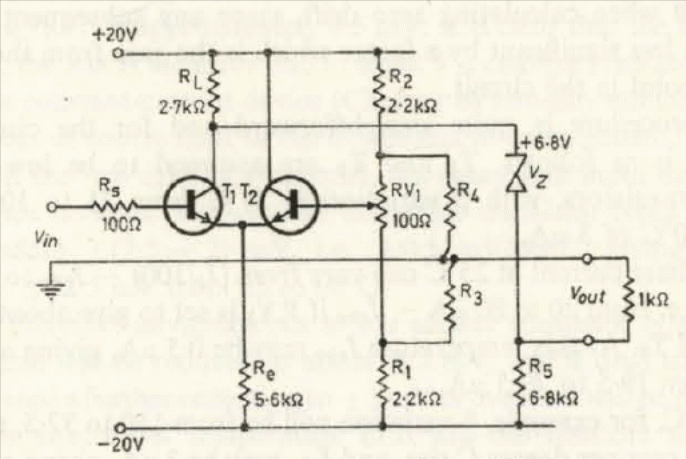

This circuit consists of an improved version of the CIR5892, using two transistors and adjusting the operating point. The transistors can be the BC548.
