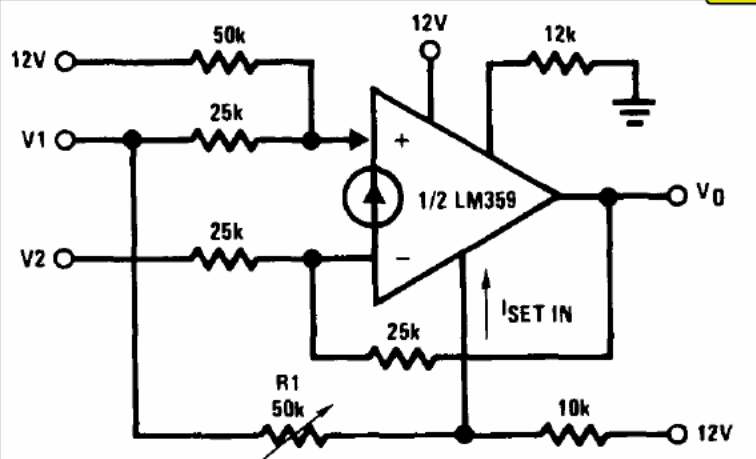

The focused circuit was found in the National Semiconductor's Linear Applications Handbook of 1994. The output is the difference between the input voltages. The LM359 is a Norton amplifier.
| Clique na imagem para ampliar |
LM359 Fast Difference Amplifier (CB14374E)
