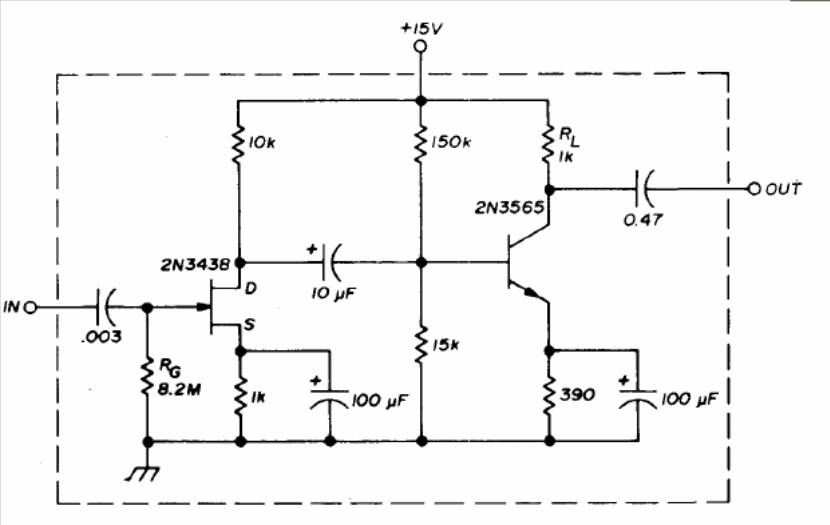

This circuit, from a 1976 documentation, amplifies signals from 100 Hz to 600 kHz with a voltage fan of 4 times. The input impedance is high, and changes can be made to the component values so that performance is optimized. The values of non-standard capacitors can be approximated to the current values.
