Analog Counter (CB6140E)

Details
Written by: Newton C. Braga

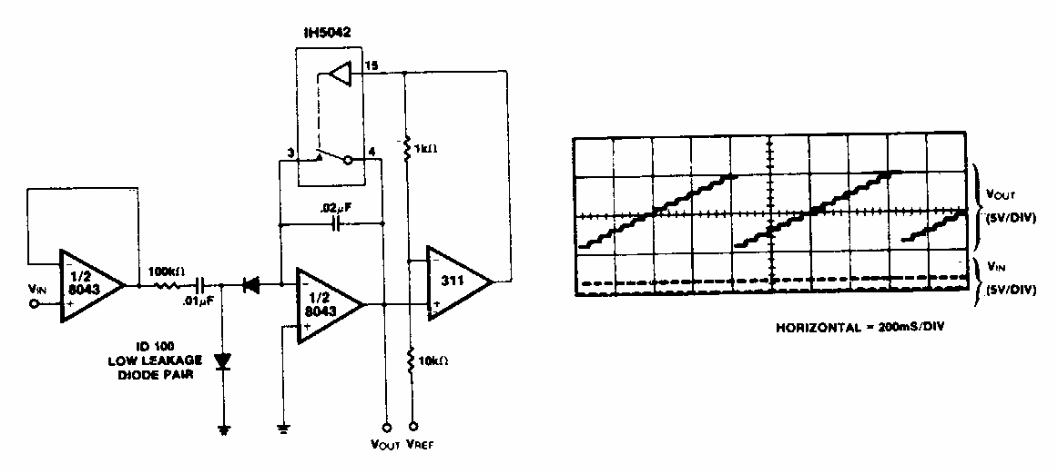

    This Intersil circuit was found in a 1980s documentation. Operational are of the time, but current equivalents can be experienced. The graph with the circuit performance is given next to the diagram.






| Clique na imagem para ampliar |
