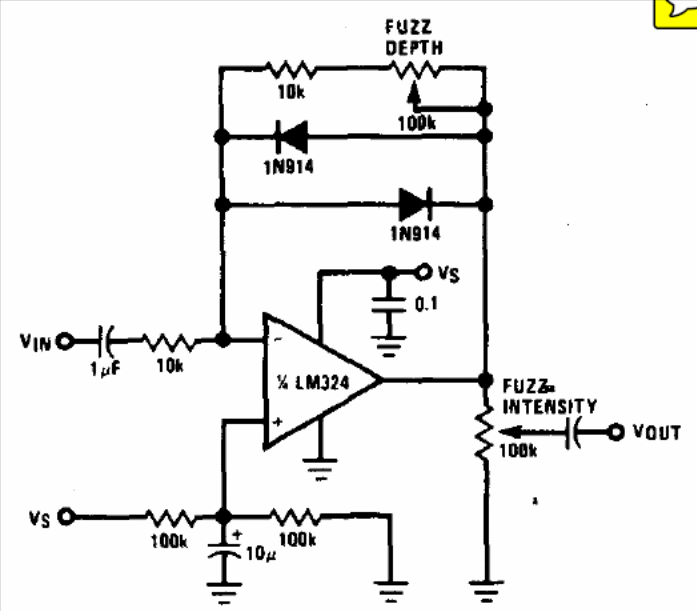

We found this circuit in the 1977 National Semiconductor Audio Handbook. The circuit produces a harmonic-rich signal with a special effect for musical instruments. The supply must be made with voltages of 6 to 12 V and the power source does not need to be symmetrical.
| Clique na imagem para ampliar |
