Pulse divider (CB6830E)

Details
Written by: Newton C. Braga

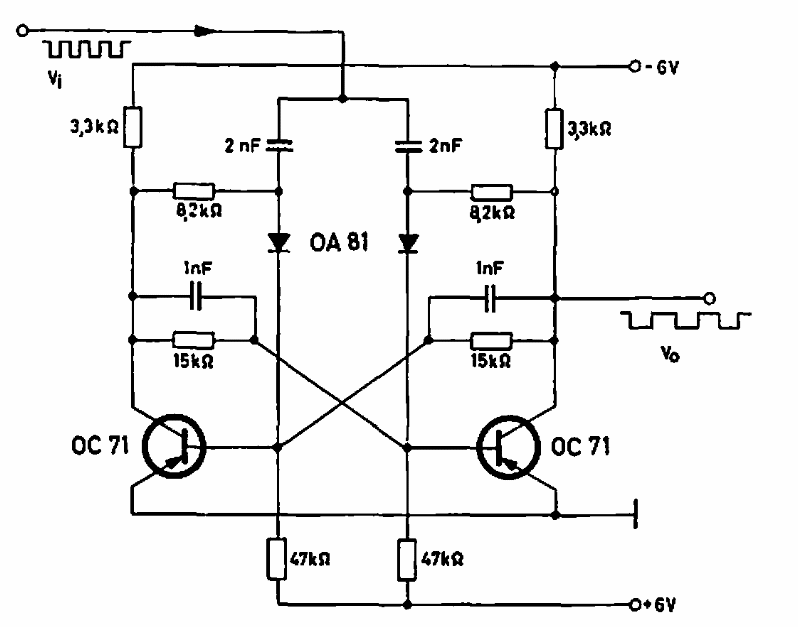

     This circuit divides the frequency of a 2 kHz signal by 2. The circuit was found in Philips documentation from 1964. Modern transistors can be used for higher frequencies.
