Sound controlled robot (CB7090E)

Details
Written by: Newton C. Braga

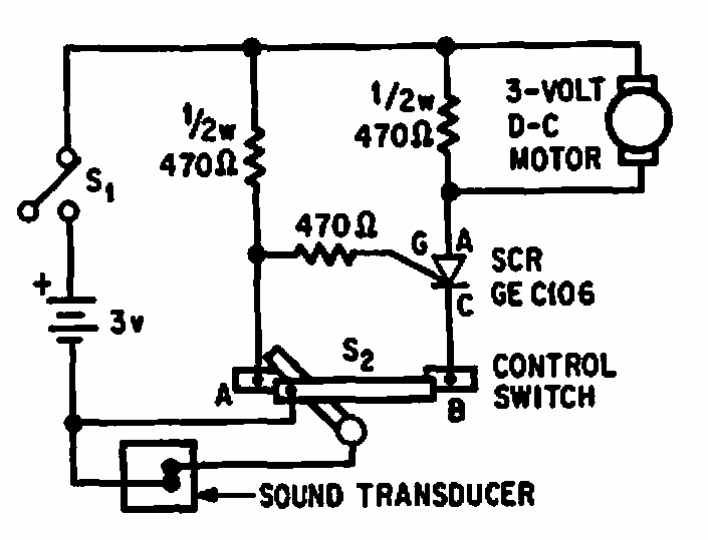

     This sonic control circuit for a small robot turtle was obtained in an American documentation from 1967. The circuit uses a ceramic capsule to fire an SCR.




| Clique na imagem para ampliar |
