Bistable Indicator (CB6678E)

Details
Written by: Newton C. Braga

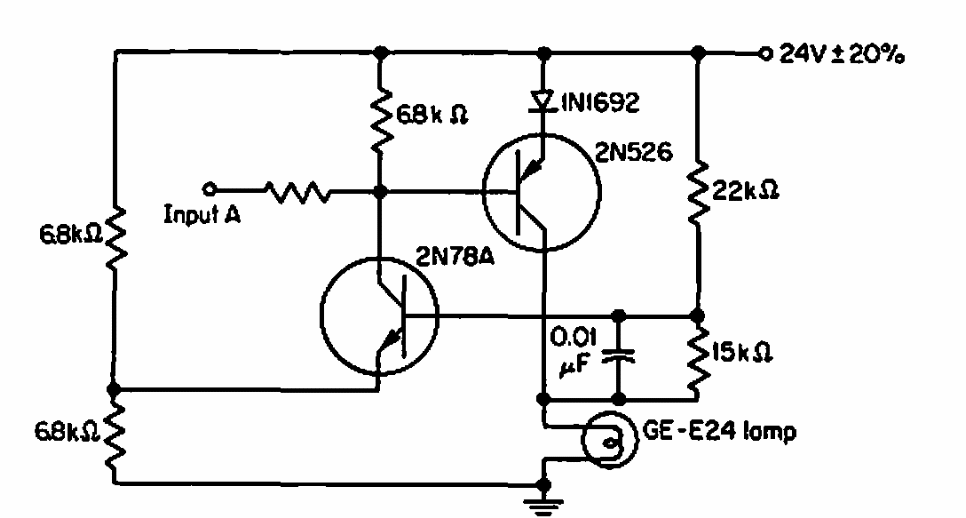

    Found in an American publication of 1968, this circuit makes use of a pilot light of the time. It can be replaced with LED with appropriate series resistor. Transistors may be modern equivalents.
