Locked solenoid driver (CB7232E)

Details
Written by: Newton C. Braga

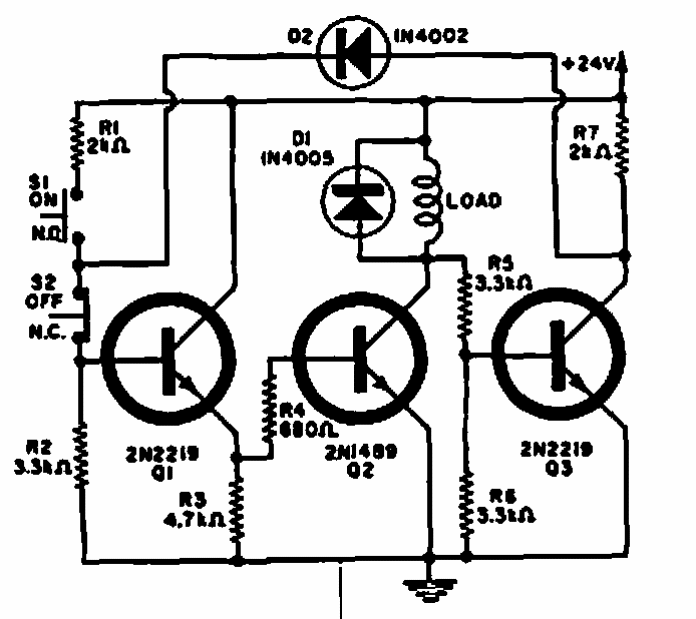

     We found this circuit in a 1967 El3ectronics World. The transistors are from the era but can be replaced by current equivalents. The circuit is for 5 A loads.
