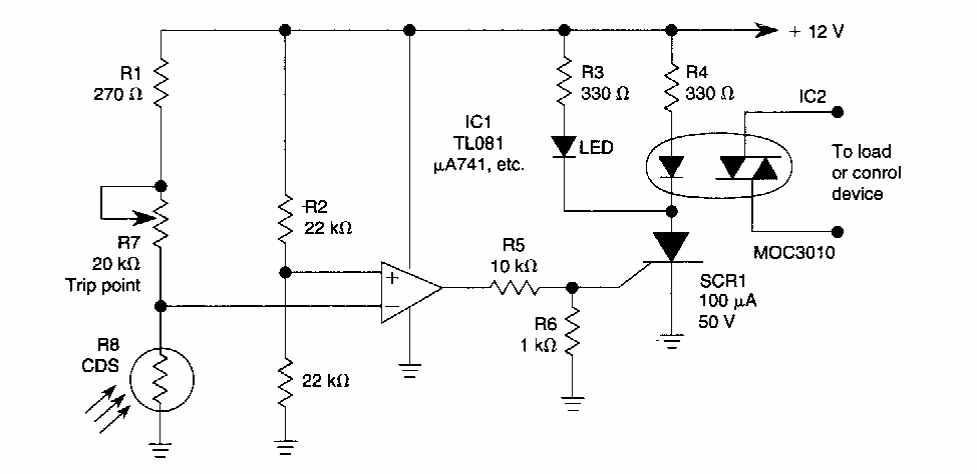

This circuit was found in an American 1990s documentation. It can directly trigger a triac when light is detected by the sensor. The integrated circuit is common, like the 741.
| Clique na imagem para ampliar |
Light Alarm (CB6430E)
- Details
- Written by: Newton C. Braga
