600 W Dimmer (CB7215E)

Details
Written by: Newton C. Braga

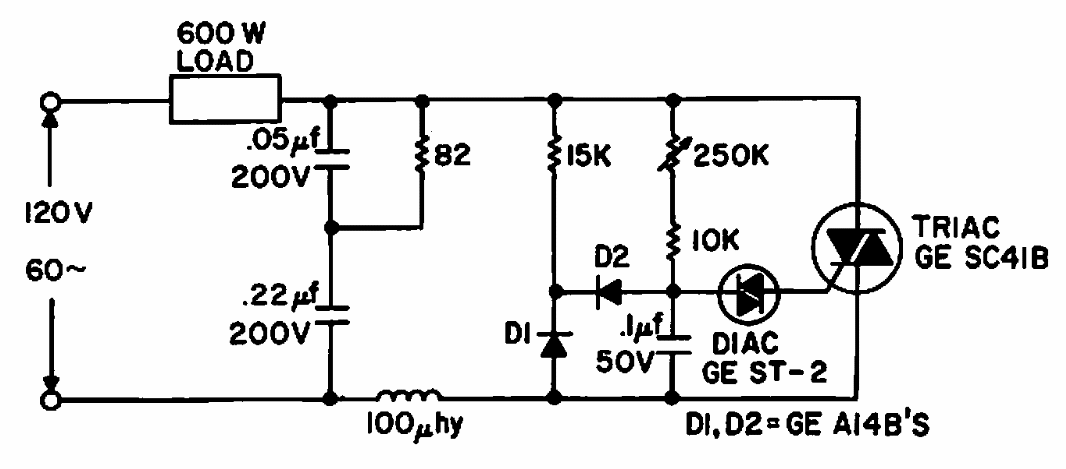

     This circuit is from an1966 General Electric documentation. The Triac can be equivalent to 6 A or more, mounted on a good heatsink. Any diac can be used.




| Clique na imagem para ampliar |
