Binary Indicator (CB6700E)

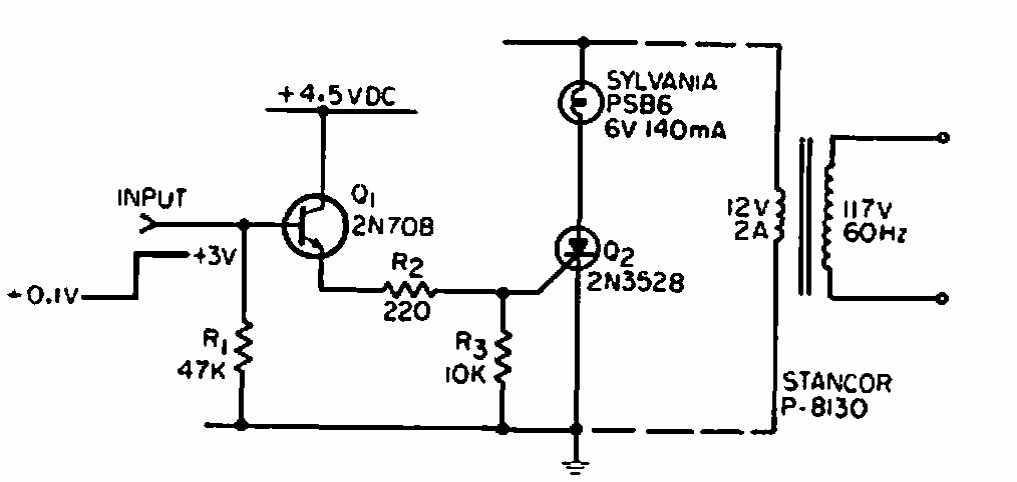

This circuit was obtained from old documentation but can be used as a shield in a modern application. The SCR can be 106 series and a general-purpose transistor.
