Gain Control with Limiter (CB6322E)

Details
Written by: Newton C. Braga

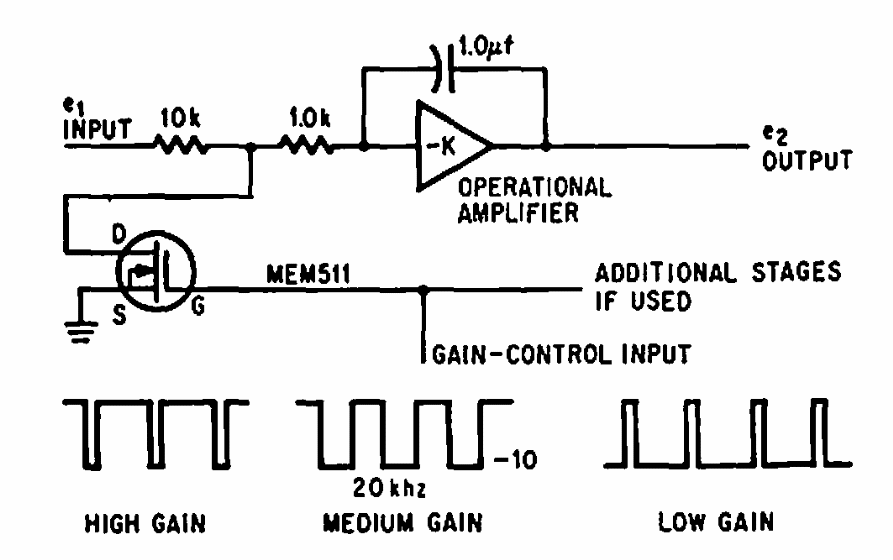

     This circuit was found in a 1967 US documentation. It shows how to build a gain control by digital signals. The circuit can be used as a shield. FET can be a modern equivalent.




| Clique na imagem para ampliar |
