Microphone Amplifier (CB6204E)

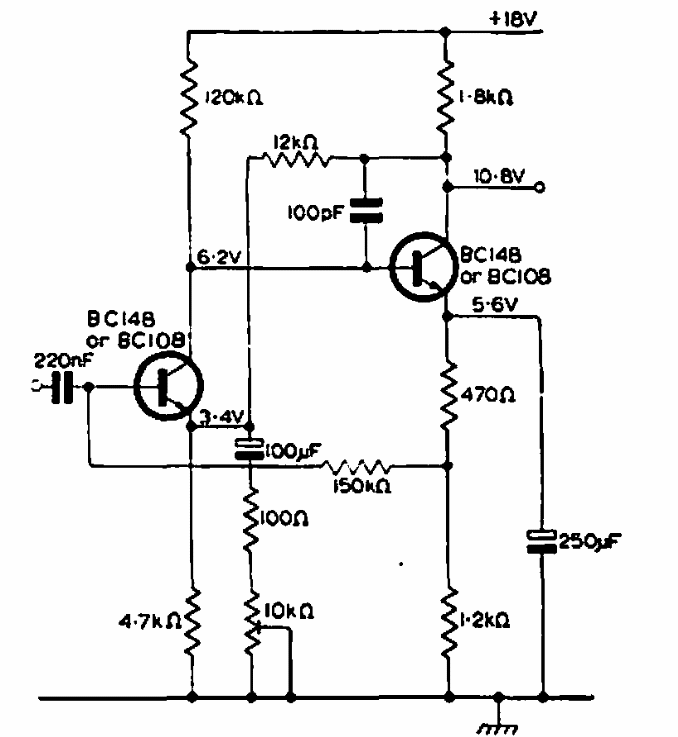

This amplifier was found in a 1969 Mullard documentation. The circuit uses transistors that have as modern equivalents the BC548 and BC549.

| Clique na imagem para ampliar |

Cascading the 4518 (CB082E)
The 4518 can be cascaded to count to values higher than 10. The output EN of this device can be...
Audio Frequency Meter (CB1466E )
This instrument was obtained in a documentation for radio amateurs of 1976. The circuit measures...
Variable Capacitor with Transistors (CB6448E)
We found this circuit in a 1966 US documentation. It simulates a variable capacitor that can vary...
