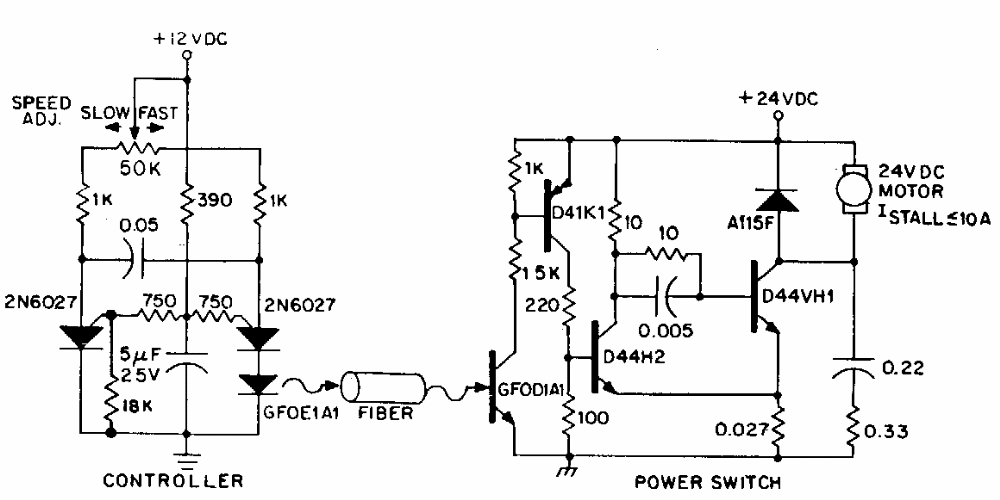

This circuit was found in an 80's General Electric documentation. The circuit uses components from the era and is intended for DC control of a 24V motor. It can be adapted for motors with other characteristics.
| Clique na imagem para ampliar |
Fiber Optic Motor Control (CB6232E)
- Details
- Written by: Newton C. Braga
