Low resistance adapter (CB7390E)

Details
Written by: Newton C. Braga

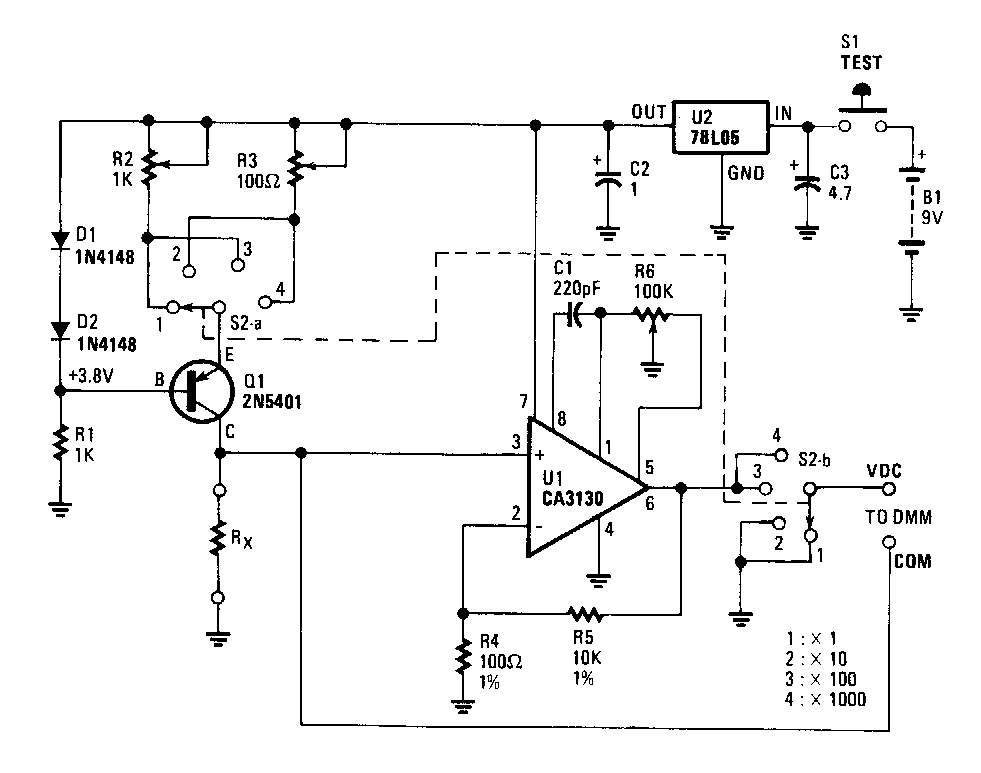

     Found in a Hands On Electronics from the 80's this circuit allows the reading of low resistances in a common multimeter. The circuit consists of a constant current source.
