Line amplifier (CB6992E)

Details
Written by: Newton C. Braga

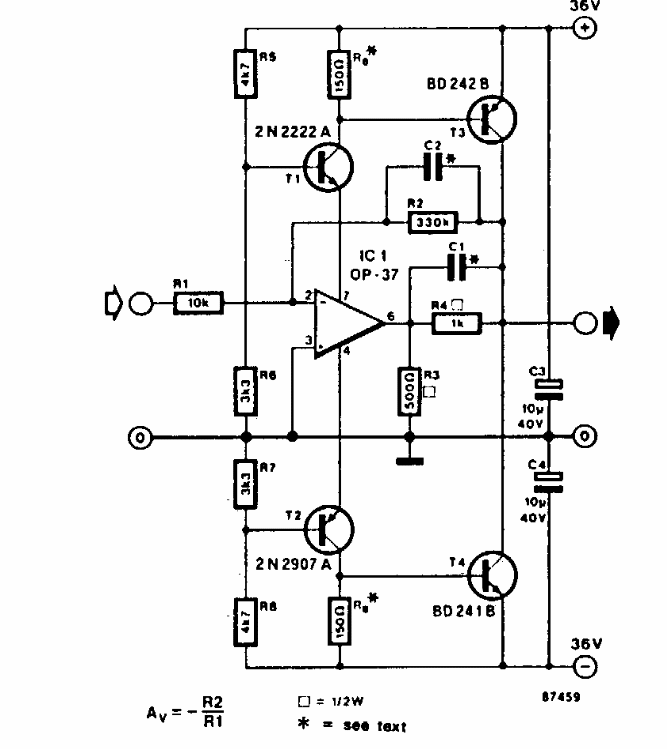

     This circuit was found in ancient American documentation. It provides a 70 Vpp signal at frequencies up to 100 kHz. Observe the high supply voltage.




| Clique na imagem para ampliar |
