Multi Loop Alarm (CB6414E)

Details
Written by: Newton C. Braga

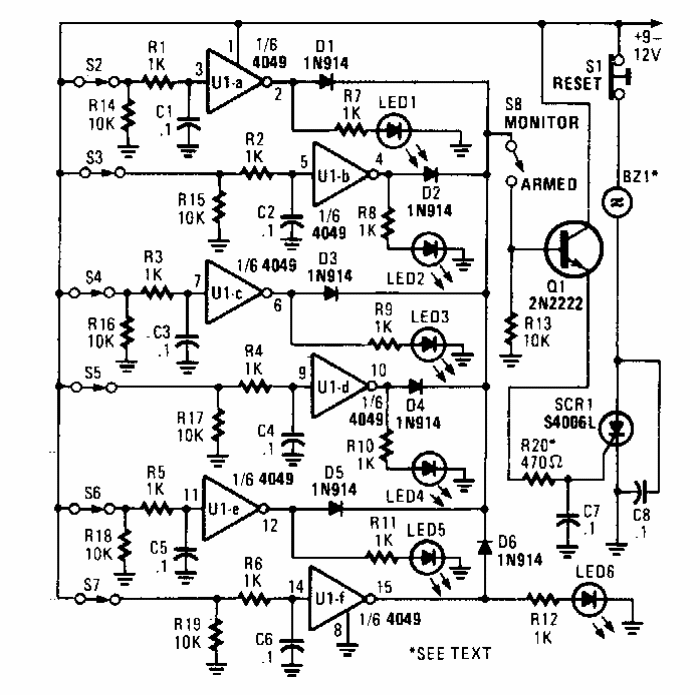

     We found this circuit in a Popular Electronics of the 90s. The circuit can be easily mounted today, as the components are common. The SCR can be the TIC106.
