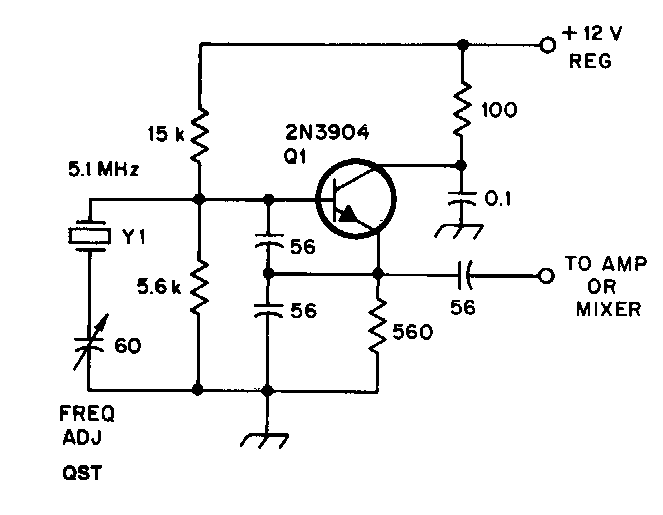

SSB Local Oscillator (CB6145E)

This 5.1 MHz circuit was found in a 1980s documentation. The frequency is given by the crystal and general purpose transistors can be used.

| Clique na imagem para ampliar |
