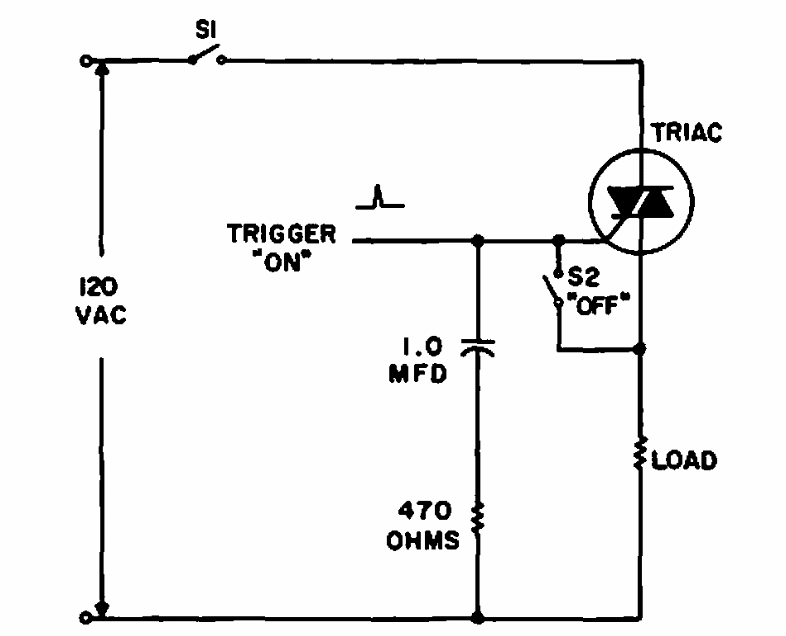

AC Triac latch (CB7237E)

Details
Written by: Newton C. Braga



     This circuit is suggested by a 1965 General Electric documentation. The triac must be in accordance with the controlled load.
